Quickly Retrieve Oracle GoldenGate Service Ports with an Automated Script

Introduction

Oracle GoldenGate is widely used for real-time data replication, but managing its network configurations across multiple deployments can be a little tricker for finding out.

When troubleshooting, performing security audits, or setting up integrations, quickly retrieving the network listening ports of GoldenGate services can be a lifesaver.

To simplify this, I’ve created an ad-hoc query script that automates the retrieval of:

The Service Manager’s listening port
Each deployment’s GoldenGate services & their ports

No more manual API calls or checking logs—this script fetches and formats everything into a clear, structured table.

Why Do You Need This Script?

Oracle GoldenGate deployments include multiple services, each running on a dedicated port:

ServiceManager – The main service that manages deployments
adminsrvr – Administration Server
distsrvr – Distribution Server
pmsrvr – Performance Metrics Server
recvsrvr – Receiver Server

Without automation, checking these services means running multiple API queries manually—time-consuming and error-prone.

This script eliminates that hassle by automatically:

Querying the GoldenGate REST API
Extracting service ports for multiple deployments
Formatting results into a readable table
Handling errors gracefully (missing ports, service downtime, etc.)

How the Script Works

Retrieves Service Manager Port

The script first queries the Service Manager API to find its network listening port:

/services/v2/deployments/ServiceManager/services/ServiceManager

Fetches Deployment Service Ports

For each deployment (e.g., WEST, EAST, etc.), the script retrieves the ports for:

/services/v2/deployments/{deployment_name}/services/{service_name}

Outputs Data in a Structured Table

Instead of raw JSON, the script formats result in a clean, readable table.

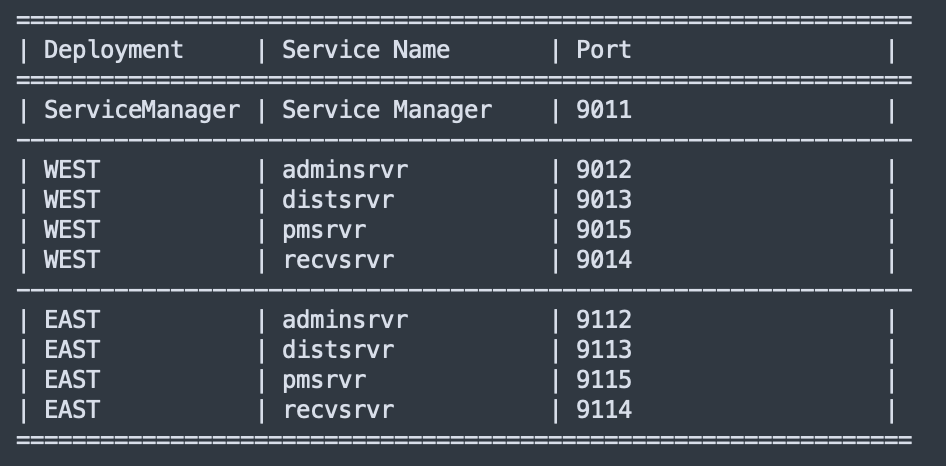

Example Output

When executed, the script returns:

Service Manager Port (ServiceManager) – Ensures easy access to deployment management
Deployment Services (WEST, EAST) – Confirms correct configurations
Structured Formatting – Helps quickly analyze the data

Key Benefits of Using This Script

1. Eliminates Manual Lookups

Instead of checking each service manually, this script does it in one step.

2. Helps Troubleshoot Configuration Issues

Easily verify if a service is missing or listening on the wrong port.

3. Useful for Firewall & Security Checks

Quickly confirm if firewall rules allow communication between services.

4. Supports Multiple Deployments Automatically

The script dynamically fetches ports for multiple deployments (e.g., WEST, EAST, etc.).

5. Clear & Readable Output

Ports are displayed in an organized table
Errors (e.g., missing services) are clearly indicated

The Script

#!/bin/bash

# ----------------------------------------------------------
# Script Name: ogg_check_services_ports.sh
# Author: Alex Lima
# Description:
#   This script queries an GoldenGate API for all GoldenGate deployment services
#   and extracts their network listening ports.
#
# Features:
#   - Loops through a list of service names.
#   - Sends API requests to retrieve service details.
#   - Extracts the "serviceListeningPort" value from the JSON response.
#   - Handles errors gracefully if the API is unreachable or if data is missing.
#   - Uses configurable variables for host, port, authentication, and deployments.
#
# Requirements:
#   - `curl` must be installed to make API requests.
#   - `jq` must be installed to parse JSON responses.
#
# Usage:
#   1. Modify the script variables (e.g., host, port, deployment and authentication).
#   2. Give execution permissions: chmod +x ogg_check_services_ports.sh
#   3. Run the script: ./ogg_check_services_ports.sh
#
# ----------------------------------------------------------

# Define variables
host_name="localhost"      # OGG host
port="9090"                       # OGG port (Service Manager might have a different port)
deployments=("WEST" "EAST") # List of deployments to query, e.g multiple deployments ("WEST" "EAST")
service_names=("adminsrvr" "distsrvr" "pmsrvr" "recvsrvr") # List of services - DO NOT CHANGE THIS

# Authentication
auth_token="Basic b2dnYWRtaW46V2VsY29tZSMjMTIz"

# API paths
api_path="/services/v2/deployments"
service_manager_path="/services/v2/deployments/ServiceManager/services/ServiceManager"

# JSON path to extract serviceListeningPort
json_service_port=".response.config.network.serviceListeningPort"

# Print table header
echo "==================================================="
echo "| Deployment     | Service Name       | Port      |"
echo "==================================================="

# Query the Service Manager for its port
service_manager_url="https://${host_name}:${port}${service_manager_path}"
service_manager_response=$(curl --location --silent --fail --insecure \
  "$service_manager_url" \
  --header "Authorization: $auth_token")

# Extract Service Manager port
service_manager_port=$(echo "$service_manager_response" | jq -r "$json_service_port" 2>/dev/null)

# Display Service Manager Port
if [[ -z "$service_manager_port" || "$service_manager_port" == "null" ]]; then
  service_manager_port="Not Available"
fi
printf "| %-14s | %-18s | %-9s |\n" "ServiceManager" "Service Manager" "$service_manager_port"
echo "---------------------------------------------------"

# Loop through each deployment
for deployment_name in "${deployments[@]}"; do

  # Loop through each service in the deployment
  for service_name in "${service_names[@]}"; do

    # Construct API URL
    api_url="https://${host_name}:${port}${api_path}/${deployment_name}/services/${service_name}"

    # Send API request with --insecure
    response=$(curl --location --silent --fail --insecure \
      "$api_url" \
      --header "Authorization: $auth_token")

    # Check if request failed
    if [[ $? -ne 0 ]]; then
      printf "| %-14s | %-18s | %-9s |\n" "$deployment_name" "$service_name" "Error"
      continue
    fi

    # Extract the serviceListeningPort
    service_port=$(echo "$response" | jq -r "$json_service_port" 2>/dev/null)

    # Check if port is found
    if [[ -z "$service_port" || "$service_port" == "null" ]]; then
      service_port="Not Available"
    fi

    # Print row
    printf "| %-14s | %-18s | %-9s |\n" "$deployment_name" "$service_name" "$service_port"

  done
  echo "---------------------------------------------------"
done

Limitations & Future Enhancements

Not a Continuous Monitor

This is an on-demand tool, not a real-time monitoring solution
If you need alerts, consider integrating it with Prometheus or Grafana

No Auto-Alerts

If a service is missing, it just prints “Not Available”
You could extend it to send email or Slack notifications

SSL Validation Bypassed (–insecure)

The script currently ignores SSL errors
In production, consider using a proper certificate (–cacert)

Conclusion

This script is a quick and efficient way to retrieve Oracle GoldenGate service ports without the hassle of manual lookups. Whether you’re a database administrator, DevOps engineer, or security analyst, this tool will save time and provide instant insights into GoldenGate deployments. You need to get into the GoldenGate APIs to become an expert.

Try it out and make your GoldenGate management more efficient!

Alex Lima
